JMT
Oilless type, mm sized, male screw

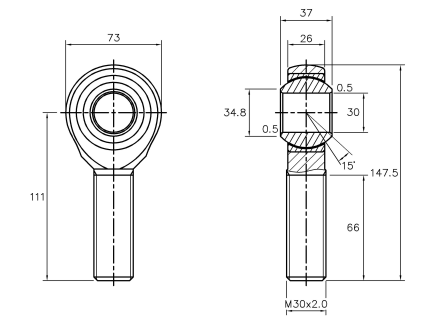

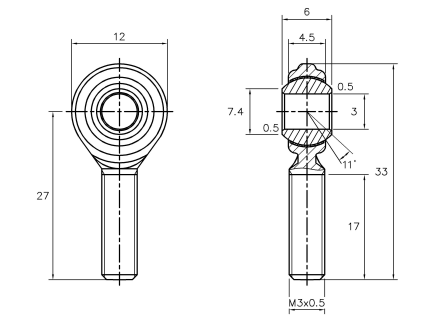

● Click on the bearing number below to view the drawing (upper) with applicable dimension for the corresponding bearing number.
Bearing Number
※ You can check the contents by scrolling left / right.
| Bearing Number |
Weight gr. |
Major Dimensions mm |
Tilting Angle a° |
Ball Radius mm |
Static Load Capacity Co/Kgf |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | Scraw KS Class 2/S |
D | B + 0.1 -0.4 |
B1 + 0 -0.1 |
d1 | L | L1 | L2 | r | |||||
| JMT 3 | 4.5 | 3 | M3 x 0.5 | 12 | 4.5 | 6 | 7.4 | 33 | 27 | 17 | 0.5 | 11 | 9.525 | 270 |
| JMT 4 | 7 | 4 | M4 x 0.7 | 14 | 5 | 7 | 7.1 | 37 | 30 | 19 | 0.5 | 12 | 10 | 310 |
| JMT 5 | 12.5 | 5 | M5 x 0.8 | 17 | 6 | 8 | 7.7 | 42 | 33.5 | 20 | 0.5 | 13 | 11.1 | 350 |
| JMT 6 | 19 | 6 | M6 x 1.0 |
18 | 6.75 | 9 | 9 | 45 | 36 | 22 | 0.5 | 13 | 12.7 | 500 |
| JMT 8 | 32 | 8 | M8 x 1.25 |
22 | 9 | 12 | 10.4 | 54 | 43 | 25 | 0.5 | 13 | 15.87 | 700 |
| JMT 10 | 54 | 10 | M10 x 1.5 | 27 | 9.75 | 14 | 12.9 | 61.5 | 48 | 29.7 | 0.5 | 13 | 19.05 | 960 |
| JMT 12 | 85 | 12 | M12 x 1.75 | 31 | 12 | 16 | 15.8 | 69 | 53.5 | 32.5 | 0.5 | 13 | 22.5 | 1,120 |
| JMT 14 | 126 | 14 | M14 x 2.0 | 34.5 | 12.7 | 19 | 16.9 | 76.5 | 59.25 | 36.5 | 0.5 | 15 | 25.4 | 1,550 |
| JMT 16 | 185 | 16 | M16 x 2.0 | 39 | 15.2 | 21 | 19.3 | 84.5 | 65 | 40 | 0.5 | 15 | 28.5 | 2,060 |
| JMT 18 | 260 | 18 | M18 x 1.5 | 42.5 | 16.2 | 23 | 21.7 | 93.5 | 72.25 | 44 | 0.5 | 15 | 31.6 |
2,570 |
| JMT 20 | 340 | 20 | M20 x 1.5 | 46 | 17 | 25 | 23.8 | 103 | 80 | 47 | 0.5 | 15 | 34.5 | 2,840 |
| JMT 22 | 435 | 22 | M22 x 1.5 | 54 | 21 | 28 | 25.8 | 112 | 85 | 51 | 0.5 | 15 | 38.1 |
3,400 |
| JMT 25 | 650 | 25 | M24 x 2.0 | 64 | 23 | 31 | 29.8 | 128 | 96 | 57 | 0.5 | 15 | 43 | 5,980 |
| JMT 30 | 910 | 30 | M30 x 2.0 | 73 | 26 | 37 | 34.8 | 147.5 | 111 | 66 | 0.5 | 15 | 47 |
7,600 |
- Note) JMT 22 and JMT 30 are suitable for the accommodation of heavy loads because they are supplied equipped with spherical plain bearings.
