JET/JETS

Oilless type, mm sized, general type

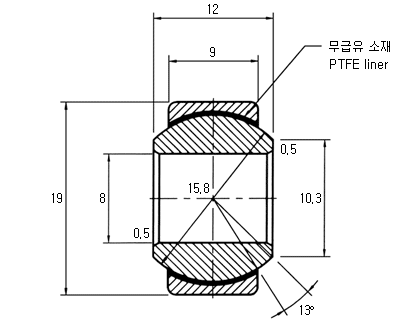

● Click on the bearing number below to view the drawing (upper) with applicable dimension for the corresponding bearing number.

※ You can check the contents by scrolling left / right.

Shaft Diameter mm	Bearing Number	Weight gr.	Major Dimensions mm							Tilting Angle a°	Static Load Capacity Co/Kgf
Shaft Diameter mm	Bearing Number	Weight gr.	d	D	B	B1	d1	ø	r	Tilting Angle a°	Static Load Capacity Co/Kgf
5	JET 5	7	5	13	6	8	7.7	11.1	0.5	13	1,300
5	JETS 5	7	5	13	6	8	7.7	11.1	0.5	13	1,040
6	JET 6	10	6	16	6.75	9	8.9	12.7	0.5	13	1,650
6	JETS 6	10	6	16	6.75	9	8.9	12.7	0.5	13	1,320
8	JET 8	16	8	19	9	12	10.3	15.8	0.5	13	2,790
8	JETS 8	16	8	19	9	12	10.3	15.8	0.5	13	2,240
10	JET 10	31	10	22	10.5	14	12.9	19.0	0.5	13	3,900
10	JETS 10	31	10	22	10.5	14	12.9	19.0	0.5	13	3,120
12	JET 12	65	12	26	12	16	15.4	22.2	0.5	13	5,200
12	JETS 12	65	12	26	12	16	15.4	22.2	0.5	13	4,160
14	JET 14	90	14	29	13.5	19	16.8	25.4	0.5	15	6,690
14	JETS 14	90	14	29	13.5	19	16.8	25.4	0.5	15	5,360
16	JET 16	100	16	32	15	21	19.3	28.5	0.5	15	8,350
16	JETS 16	100	16	32	15	21	19.3	28.5	0.5	15	6,680
18	JET 18	125	18	35	16.5	23	21.8	31.7	0.5	15	10,200
18	JETS 18	125	18	35	16.5	23	21.8	31.7	0.5	15	8,160
20	JET 20	180	20	40	18	25	24.3	34.9	0.5	15	12,250
20	JETS 20	180	20	40	18	25	24.3	34.9	0.5	15	9,800
22	JET 22	169	22	42	20	28	25.8	38.1	0.5	15	14,850
22	JETS 22	169	22	42	20	28	25.8	38.1	0.5	15	11,880
25	JET 25	235	25	47	22	31	29.8	42.9	0.5	15	18,650
25	JETS 25	235	25	47	22	31	29.8	42.9	0.5	15	14,920
30	JET 30	360	30	55	25	37	36.2	50.8	0.5	15	24,830
30	JETS 30	360	30	55	25	37	36.2	50.8	0.5	15	19,870
