ZBL

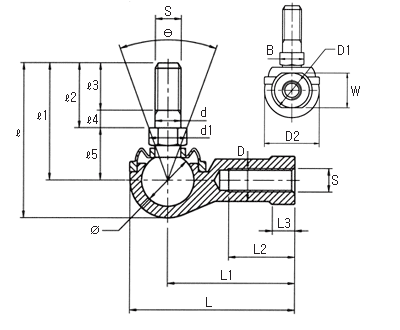

● Click on the bearing number below to view the drawing (upper) with applicable dimension for the corresponding bearing number.

Bearing Number

※ You can check the contents by scrolling left / right.

Bearing Number	Weight grf.	Screw S	Major Dimensions mm																		Tilting Angle Yield θ	Strength Static Load Pk/Kgf	Capacity Co/Kgf
Bearing Number	Weight grf.	Screw S	D	L	L1	L2	L3	D1	W 0 -0.3	D2	d	ℓ	ℓ1	ℓ2	ℓ3	ℓ4	ℓ5 ±0.3	d1	B 0 -0.3	Ball Diameter ø / mm	Tilting Angle Yield θ	Strength Static Load Pk/Kgf	Capacity Co/Kgf
ZBL 5	24	M5 x 0,8	9	35	27	14	4	11	9	16	5	30.76	24.6	13	10	3	11.6	9	8	11.11	50°	230	940
ZBL 6	37	M6 x 1.0	10	40	30	14	5	13	11	19	6	34.05	27.1	15	12	3	12.1	9.2	8	12.7	50°	360	1,230
ZBL 8	67	M8 x 1.25	13	49	37.3	17	5	16	14	23	8	39.94	30.75	17	14	3	13.75	13.2	12	15.87	50°	670	1,950
ZBL 10	110	M10 x 1.25	15	58	43	20	6.5	19	17	28	10	48.53	38	21	17.5	3.5	17	15.4	14	19.05	50°	1,090	2,810
ZBL 10B	113	M10 x 1.5	15	58	43	20	6.5	19	17	28	10	52.53	42	25	21	4	17	15.4	14	19.05	50°	1,090	2,810
ZBL 12	165	M12 x 1.25	17.5	66	50	24	8	22	19	32	12	54.11	42	23	17	6	19	18.7	17	22.22	50°	1,670	3,820
ZBL 12B	170	M12 x 1.75	17.5	66	50	24	8	22	19	32	12	61.11	49	30	24	6	19	18.7	17	22.22	50°	1,670	3,820
ZBL 14	255	M14 x 1.5	20	75	57	25	8	25	22	36	14	71.95	58	34.5	30.5	4	23.5	21	19	25.4	50°	2,020	4,990
ZBL 14B	260	M14 x 2.0	20	75	57	25	8	25	22	36	14	77.95	64	40.5	36.5	4	23.5	21	19	25.4	50°	2,020	4,990
ZBL 16	335	M16 x 1.5	22	83.5	64	31	10	27	22	39	16	74.2	60	36.5	32.5	4	23.5	22	20	25.4	40°	2,740	4,990
ZBL 18	465	M18 x 1.5	25	93	71	34	11	31	27	44	18	85.29	69.5	41.5	25	16.5	28	24.5	22	28.57	40°	3,400	6.310
