JF(mm)

Oil lubricated type, mm sized, female screw

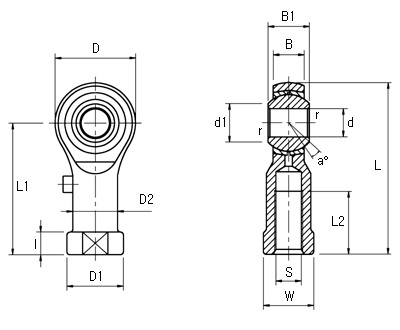

● Click on the bearing number below to view the drawing (upper) with applicable dimension for the corresponding bearing number.

Bearing Number.

※ You can check the contents by scrolling left / right.

Bearing Number.	Weight gr.	Major Dimensions mm														Tilting Angle a°	Ball Radius mm	Static Load Capacity Co/Kgf
Bearing Number.	Weight gr.	d	Screw KS Class 2/S	D	B	B1	d1	L (max)	I	L1 (max)	L2	W	D1	D2	r	Tilting Angle a°	Ball Radius mm	Static Load Capacity Co/Kgf
JF 5	16.5	5	M 5 x 0.8	16	6	8	7.7	35	4	27	14	9	11	9	0.5	13	11.1	570
JF 6	25	6	M 6 x 1	18.5	6.75	9	9	39.25	4.5	30	14	11	13	10	0.5	13	12.7	700
JF 8	43	8	M 8 x 1.25	23	9	12	10.4	48.5	6	37	17	14	16	12.5	0.5	13	15.87	1,000
JF 10	72	10	*M10 x 1.25	27.5	10.5	14	12.9	58.25	8	44.5	21	17	19	15	0.5	13	19.05	1,350
JF 10	72	10	M10 x 1.5	27.5	10.5	14	12.9	58.25	8	44.5	21	17	19	15	0.5	13	19.05	1,350
JF 12	107	12	*M12 x 1.25	30.5	12	16	15.8	66.75	7.5	51.5	24	19	22	17.5	0.5	13	22.5	1,700
JF 12	107	12	M12 x 1.75	30.5	12	16	15.8	66.75	7.5	51.5	24	19	22	17.5	0.5	13	22.5	1,700
JF 14	160	14	*M14 x 1.5	34	13.5	19	16.9	75	9	58	27	22	25	20	0.5	15	25.4	2,100
JF 14	160	14	M14 x 2	34	13.5	19	16.9	75	9	58	27	22	25	20	0.5	15	25.4	2,100
JF 16	210	16	*M16 x 1.5	38	15	21	19.3	84.5	9.5	65.5	33	24	27	22	0.5	15	28.5	2,550
JF 16	210	16	M16 x 2	38	15	21	19.3	84.5	9.5	65.5	33	24	27	22	0.5	15	28.5	2,550
JF 18	295	18	M18 x 1.5	43	16.5	23	21.7	92.5	10	71	36	27	31	25	0.5	15	31.6	3,000
JF 20	380	20	M20 x 1.5	50	16	24	23.4	103	11	78	40	30	34	27.5	0.5	15	33.5	3,850
JF 22	490	22	M22 x 1.5	54	17	25	25.2	111	12	84	43	32	37	30	0.5	15	35.5	4,620
JF 24	750	25	*M24 x 1.5	64	19	28	29.5	126	12	94	50	36	42	33.5	0.5	15	40.7	8,140
JF 24			*M24 x 2.0
JF 25			M25 x 1.5
JF 25			*M26 x 1.5
JF 30	900	30	*M30 x 1.5	73	21	32	34.4	145	16.5	108.5	50	42	49	40	0.5	15	47	9,100
JF 30	900	30	M30 x 2.0	73	21	32	34.4	145	16.5	108.5	50	42	49	40	0.5	15	47	9,100
JF 35	1,400	35	*M36 x 1.5	82	23	35	39.8	173	18	132	60	49	58	48	0.5	15	53	11,400
JF 35	1,400	35	M36 x 2.0	82	23	35	39.8	173	18	132	60	49	58	48	0.5	15	53	11,400
JF 40	2,000	40	M39 x 3	92	23	28	45	188	18	142	65	55	65	52	0.6	7	53	17,800
JF 45	2,500	45	M42 x 3	102	27	32	50.7	196	20	145	65	60	70	58	0.6	7	60	23,800
JF 50	3,500	50	M45 x 3	112	30	35	55.9	216	25	160	68	65	75	62	0.6	6	66	28,800
JF 60	5,500	60	M52 x 3	135	38	44	66.8	242.5	20	175	70	75	88	70	1	6	80	44,600
JF 70	8,600	70	M56 x 4	160	42	49	77.8	280	20	200	80	85	98	80	1	6	92	51,800
JF 80	12,000	80	M64 x 4	180	47	55	89.4	320	25	230	85	100	110	95	1	6	105	68,800

Ordering Information : Please specify the screw dimensions when ordering the screws marked with an asterisk on the table above.
Note) JF 20 and JF 80 are suitable for the accommodation of heavy loads because they are supplied equipped with sperical plain bearings.
Note) Bearings greater than JF20 are medium duty bearings which can be used under difficult conditions including the most unfavorable conditions including rain, snow, mud and dust.
Note) Right handed screws are indicated with “R” and white plated. Left handed screws are indicated with “L” and yellow plated.
