CFH

Cage type, mm sized, eccentric type

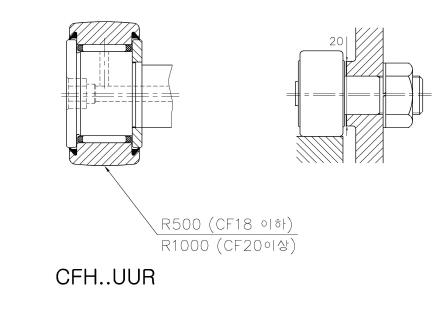

● Click on the bearing number below to view the drawing (upper) with applicable dimension for the corresponding bearing number.

※ You can check the contents by scrolling left / right.

Stud Diameter G mm	Bearing Number				Weight gr.	Major Dimensions mm												Installation Dimensions f Minimum mm	Basic Dynamic Rated Load C/kgf	Basic Static Rated Load Co/Kgf	Allowed RPM
	No Sealant Applied		Sealant Applied			Major Dimensions mm
	No Sealant Applied	Sealant Applied	No Sealant Applied	Sealant Applied		H	D	Screw S	B	B₁	B₃	M	g₁	G₁	B₂	e	r
	CFH..	CFH..R	CFH..UU	CFH..UUR		H	D	Screw S	B	B₁	B₃	M	g₁	G₁	B₂	e	r
12	CFH 12	CFH 12 R	CFH 12 UU	CFH 12 UUR	95	6	30	M12X 1.5	14	15	40	M6 X 1	3	14	6	0.4	1.5	20	730	900	14,000
12	CFH 12-1	CFH 12-1 R	CFH 12-1 UU	CFH 12-1 UUR	105	6	32	M12X 1.5	14	15	40	M6 X 1	3	14	6	0.4	1.5	20	730	900	14,000
16	CFH 16	CFH 16 R	CFH 16 UU	CFH 16 UUR	170	6	35	M16 X 1.5	18	19.5	52	M6 X 1	3	18	8	0.5	1.5	24	1,100	1,680	10,000
18	CFH 18	CFH 18 R	CFH 18 UU	CFH 18 UUR	250	10	40	M18 X 1.5	20	21.5	58	M6 X 1	3	20	10	0.6	1.5	26	1,350	2,310	8,500
20	CFH 20	CFH 20 R	CFH 20 UU	CFH 20 UUR	460	10	52	M20 X 1.5	24	25.5	66	M6 X 1	4	22	12	0.7	1.5	36	1,900	3,180	7,000
20	CFH 20-1	CFH 20-1 R	CFH 20-1 UU	CFH 20-1 UUR	385	10	47	M20 X 1.5	24	25.5	66	M6 X 1	4	22	12	0.7	1.5	36	1,900	3,180	7,000
24	CFH 24	CFH 24 R	CFH 24 UU	CFH 24 UUR	815	12	62	M24 X 1.5	29	30.5	80	M6 X 1	4	25	12	0.8	1.5	40	2,800	4,330	6,500
24	CFH 24-1	CFH 24-1 R	CFH 24-1 UU	CFH 24-1 UUR	1,140	12	72	M24 X 1.5	29	30.5	80	M6 X 1	4	25	12	0.8	1.5	40	2,800	4,330	6,500
30	CFH 30	CFH 30R	CFH 30 UU	CFH 30 UUR	1,870	12	80	M30 X 1.5	35	37	100	M6 X 1	4	32	15	1.0	2	46	4,170	7,810	5,000
	CFH 30-1	CFH 30-1 R	CFH 30-1 UU	CFH 30-1 UUR	2,030		85
	CFH 30-2	CFH 30-2R	CFH 30-2 UU	CFH 30-2 UUR	2,220		90
