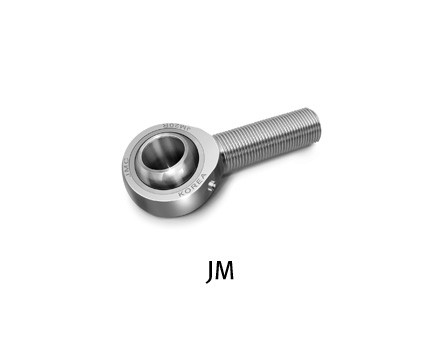

JM(mm)
Basically, oil lubricated and oilless types are available for rod ends.
Oil lubricated rod ends are suitably applied for diverting loads and others, JMC bearings design and manufacture JF with re-lubrication feed and grease nipples for grease injection.
Since duty of bearings greater than JM20 is very high with its size being large, specially manufactured spherical plains are inserted considering load and tilting angle to endure such heavy duty.

2

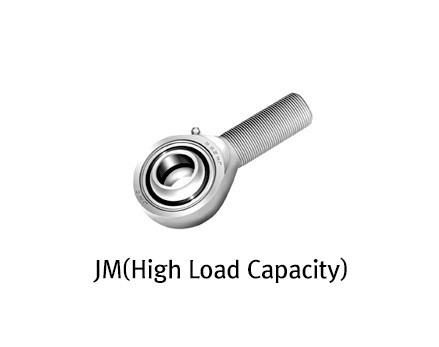

JM(Heavy duty)
Since duty of bearings greater than JM20 are high, spherical plains are inserted to endure such duty, as compared to previous products where brass alloy BUSH and BALL are combined.
Since housing and ball used for this spherical plains are manufactured using heat treated high carbon chromium bearing steel, you can safely use the bearing safely under heavy load.

1

JM(inch)
Inch type rod ends manufactured by JMC are oil lubricated types.
Oil lubricated rod ends are suitably applied for diverting loads and others, JMC bearings design and manufacture JM with re-lubrication feed and grease nipples for grease injection.
Oilless inch types are manufactured upon demand.
