JS
加油型；mm尺寸
● 点击下端的名称代码，即可确认适用对应数值的图纸（上端）。
※ 您可以通过向左/向右滚动来检查内容。
| Bearing Number |
Weight gr. |
Major Dimensions mm |
Tilting Angle a° |
Static Load Capacity Co/Kgf |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | B1 | d1 | H | ø | r | ||||
| JS 5 | 8.5 | 5 | 16 | 6 | 8 | 7.7 | 1.0 | 11.1 | 0.5 | 13 | 720 |
| JS 6 | 13 | 6 |
18 | 6.75 | 9 | 9 | 1.0 | 12.7 | 0.5 | 13 | 900 |
| JS 8 | 24 | 8 |
22 | 9 | 12 | 10.4 | 1.0 | 15.8 | 0.5 | 13 | 1,530 |
| JS 10 | 39 | 10 | 26 | 10.5 | 14 | 12.9 | 1.2 | 19.0 | 0.5 | 13 | 2,150 |
| JS 12 | 58 | 12 | 30 | 12 | 16 | 15.4 | 1.5 | 22.2 | 0.5 | 13 | 2,880 |

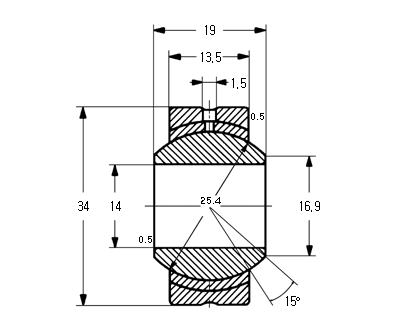

| JS 14 | 84 | 14 | 34 | 13.5 | 19 | 16.9 | 1.5 | 25.4 | 0.5 | 15 | 3,690 |
| JS 16 | 111 | 16 | 38 | 15 | 21 | 19.4 | 2.5 | 28.5 | 0.5 | 15 | 4,590 |
| JS 18 | 160 | 18 | 42 | 16.5 | 23 | 21.9 | 2.5 | 31.7 | 0.5 | 15 | 5,670 |
| JS 20 | 210 | 20 | 46 | 18 | 25 | 24.4 | 2.5 | 34.9 | 0.5 | 15 | 6,750 |
| JS 22 | 265 | 22 | 50 | 20 | 28 | 25.8 | 2.5 | 38.1 | 0.5 | 15 | 8,080 |

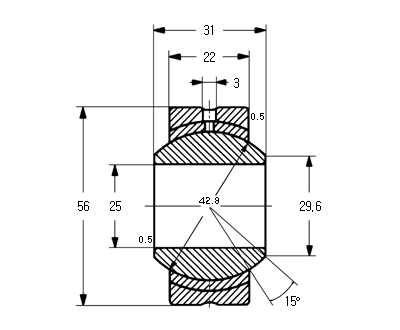

| JS 25 | 390 | 25 | 56 | 22 | 31 | 29.6 | 3 | 42.9 | 0.5 | 15 | 10,190 |
| JS 30 | 610 | 30 | 66 | 25 | 37 | 34.8 | 3 | 50.8 | 0.5 | 15 | 13,590 |
