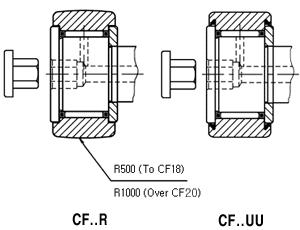

If You Click The Bearing Number In The Below, You Will Check The Drawing Applied Numerical Values Correspondent To Each Bearing Number.

Bearing No. CF 3 (R/UU/UUR) CF 4 (R/UU/UUR) CF 5 (R/UU/UUR) CF 6 (R/UU/UUR) CF 8 (R/UU/UUR) CFA 10 (R/UU/UUR)
CFA 10-1 (R/UU/UUR) CF 10 (R/UU/UUR) CF 10-1 (R/UU/UUR) CF 12 (R/UU/UUR) CF 12-1 (R/UU/UUR) CF 16 (R/UU/UUR)
CF 18 (R/UU/UUR) CF 20 (R/UU/UUR) CF 20-1 (R/UU/UUR) CF 24 (R/UU/UUR) CF 24-1 (R/UU/UUR) CF 30 (R/UU/UUR)
CF 30-1 (R/UU/UUR) CF 30-2 (R/UU/UUR)

Stud diameter
G mm
 Bearing No. Mass
gr.		 Dimensions mm Minimum Clamping Diameter
f
mm		 Basic dynamic load ratings
C/kgf		 Basic static load ratings
Co/Kgf 		Limiting speed
rpm
Unsealed Sealed
Cylindrical outer ring Crowned outer ring Cylindrical outer ring Crowned outer ring H D Thread sizes S B B1 B3 M g1 G1 B2 r
CF.. CF..R CF..UU CF..UUR
3 * CF 3 CF 3R CF 3UU CF 3UUR 4.2 2 10 M3 x 0.5 7 8 17     5   0.3 6.8 140 90 47,000
4 * CF 4 CF 4R CF 4UU CF 4UUR 7.2 2.5 12 M4 x 0.7 8 9 20     6   0.5 8.6 190 140 37,000
5 CF 5 CF 5R CF 5UU CF 5UUR 10.5 3 13 M 5 x 0.8 9 10 23     7.5   0.5 9.7 280 180 29,000
6 CF 6 CF 6R CF 6UU CF 6UUR 18.5
 3 16 M 6 x 1 11 12 28     9   0.5 11 270 170 25,000
8 CF 8 CF 8R CF 8UU CF 8UUR 28.5 4 19 M 8x 1.25 11 12 32     11   0.5 13 300 210 20,000
10 CFA 10 CFA 10R CFA 10UU CFA 10UUR 45 4 22 M10 x 1.0 12 13 36     13   1 15 410 320 17,000
CFA 10-1 CFA 10-1R CFA 10-1UU CFA 10-1UUR 60 26
10 CF 10 CF 10R CF 10UU CF 10UUR 45 4 22 M10 x 1.25 12 13 36     13   1 15 410 320 17,000
CF 10-1 CF 10-1R CF 10-1UU CF 10-1UUR 60 26
12 CF 12 CF 12R CF 12UU CF 12UUR 95 6 30 M12 x 1.5 14 15 40 M6 x 1 3 14 6 1.5 20 590 450 14,000
CF 12-1 CF 12-1R CF 12-1UU CF 12-1UUR 105 32
16 CF 16 CF 16R CF 16UU CF 16UUR 170 6 35 M16 x 1.5 18 19.5 52 M6 x 1 3 18 8 1.5 24 850 760 10,000
18 CF 18 CF 18R CF 18UU CF 18UUR 250 10 40 M18 x 1.5 20 21.5 58 M6 x 1 3 20 10 1.5 26 1,180 1,220 8,500
20 CF 20 CF 20R CF 20UU CF 20UUR 460 10 52 M20 x 1.5 24 25.5 66 M6 x 1 4 22 12 1.5 36 1,630 1,690 7,000
CF 20-1 CF 20-1R CF 20-1UU CF 20-1UUR 385 47
24 CF 24 CF 24R CF 24UU CF 24UUR 815 12 62 M24 x 1.5 29 30.5 80 M6 x 1 4 25 12 1.5 40 2,160 2,210 6,500
CF 24-1 CF 24-1R CF 24-1UU CF 24-1UUR 1,140 72
30 CF 30 CF 30R CF 30UU CF 30UUR 1,870 12 80 M30 x 1.5 35 37 100 M6 x 1 4 32 15 2 46 2,830 3,700 5,000
CF 30-1 CF 30-1R CF 30-1UU CF 30-1UUR 2.030 85
CF 30-2 CF 30-2R CF 30-2UU CF 30-2UUR 2,220 90

Basically, JMC track rollers can be lubricated through both end of the stud with a suitable grease fitting.
The thread size of CFA10 and CFA10-1 series are M10x1.0.
Limiting speed increases 30% in oil lubrication and in case of sealed types, the limiting speed drops about 40% from the tabular data.
After assembly and oil lubrication, a hexagonal resin plug should be necessarily stopped up.
These types of '*' are produced on customer's request.
